SwiftPlantUMLApp
Generate and view class diagrams for Swift files or selected code through extensions for Xcode and Finder.
CaskDeveloper ToolsApple silicon · IntelDisabled
From homebrew/cask
30-day installs5
1-year installs101Last 365 days
Latest version1.6.0Jan 2, 2024 · Jan 2, 2024
Download size6.9MBarm64 / x86_64 · zip
Release cadenceIrregular0 releases in 30 days
About
SwiftPlantUMLApp generates class diagrams from Swift code and provides a macOS app for viewing and configuring diagram visualization.

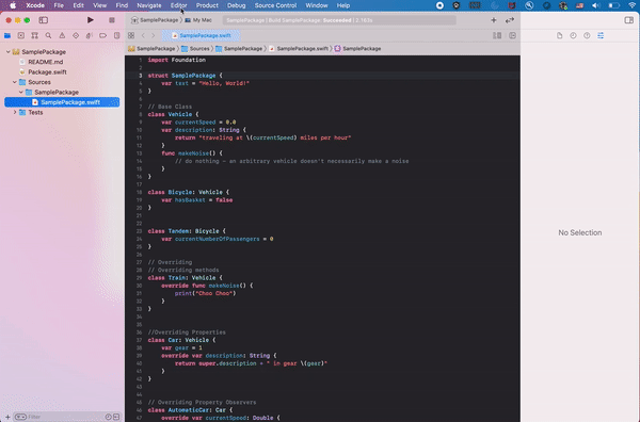

- In Xcode, create a diagram from a Swift file or selected Swift code using the Source Editor extension.
- In Finder, create a diagram from selected Swift files using the Finder extension.
- Configure diagram visualization in the hosting macOS app; configuration is optional.
- The extensions use the SwiftPlantUML Swift package. The project recommends its separate command-line tool for large diagrams spanning Swift files across folders.
Install with Homebrew:
brew install --cask swiftplantumlapp
Launch SwiftPlantUMLApp after installation, then enable the SwiftPlantUML extension under macOS Settings > Extensions > Xcode Source Editor to use it in Xcode. To use it from Finder, enable “Open Swift Class Diagram” under Extensions > Finder.
New What’s new in 1.6.0 Jan 2, 2024 · OpenNavo editorial
- FeaturesSupports package access levels from Swift 5.9.
- DependenciesUses SwiftPlantUML 0.8.0 internally.
